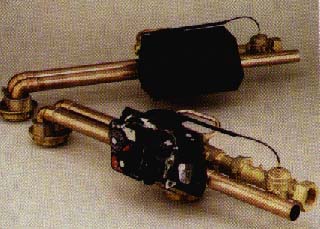

FLECK 9500 WATER CONDITIONING CONTROL


COMMONLY NEEDED PARTS
Item Description Price
10218
Piston drive microswitch
$17.00
10913-02
Injector nozzle #2, blue
$9.50
10913-03
Injector nozzle #3, yellow
$9.50
10913-04
Injector nozzle #4, green
$9.50
10914-02
Injector throat #2, blue
$9.50
10914-03
Injector throat #3, yellow
$9.50
10914-04
Injector throat #4, green
$9.50
12973-02
Injector nozzle #2, PVC
$7.00
12974-02
Injector throat #2, PVC
$7.00
14896
Geneva Wheel
$11.90
15131
control panel (back plate) for fleck 9000 and 9500 control
$60.00
15133
Drive gear assembly, uppper
$15.00
15134
Lower drive gear, 1/2 stroke
$15.00
15135
Drive gear, Fleck 9000 and 9500 valve
$26.00
15218
1 inch meter cover assembly (standard)
$180.00
15237
1 inch meter cover assembly (extended range)
$266.00
15314
Microswitch
$21.00
15320
Microswitch
$17.00
16433
Microswitch
$17.00
17744
Meter cable
$35.00
18737
Piston drive motor, 24 VAC, 50-60 Hz, 1 rpm
$139.00
18738
Piston drive motor (120 VAC, 50/60 hz, 1 rpm) replaces part number 14927
$136.00
18739
Piston drive motor (220 VAC, 50/60 hz, 1 rpm)
$139.00
18743
Timer motor (120v 60h 1/30 rpm)
$56.00
18824
timer motor (220 VAC, 50 Hz, 1/30 rpm)
$76.00
19660-1
Timer motor (220v 60h 1/30 rpm)
$78.00
19926-1
Timer motor (24v 50 Hz 1/30 rpm)
$67.00
60037
1600 brine valve assembly for 9500 control
$57.00
60039
1700 brine valve assembly for 9500 control
$150.00
60108
9500 upper piston
$84.00
60109
9500 lower piston
$135.00
60133
9500 lower seal kit
$153.00
60134
9500 upper seal kit
$80.00
60307-1
Complete timer assembly for 9000/9500, immediate regeneration, 1/30 rpm, 24 V, 60 Hz
$101.00
60307-13
Complete timer assembly for 9000/9500, immediate regeneration, 1/30 rpm, 110 V, 60 Hz, Standard Range (0-2100)
$101.00
60307-13X
Complete timer assembly for 9000/9500, immediate regeneration, 1/30 rpm, 110 V, 60 Hz, Extended Range (0-10000)
$101.00
60381
1700 brine valve assembly
$127.00
60420-00
9500 complete power head assembly
$362.00
9500-Manual
Manual
$6.00
TRANS24V
Transfomer, 120 VAC - 24 VDC
$27.00
