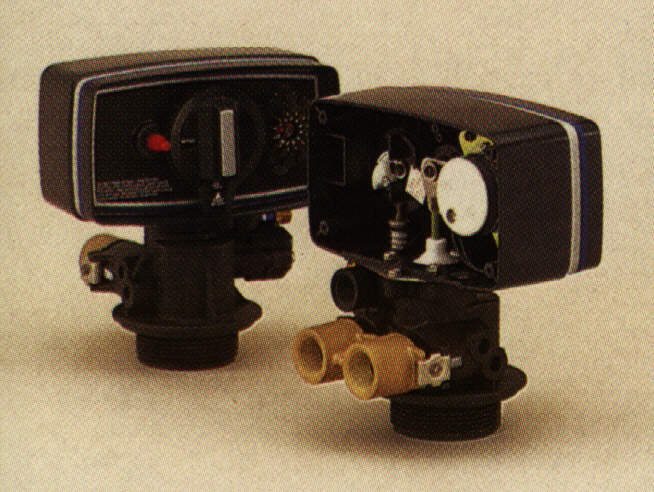

FLECK 5600 AND 5600 ECONOMINDER WATER CONDITIONING CONTROL



COMMONLY NEEDED PARTS
Item Description Price
10913-00
Injector nozzle #0, red
$9.50
10913-01
Injector nozzle #1, white
$9.50
10913-02
Injector nozzle #2, blue
$9.50
10914-00
Injector throat #0, red
$9.50
10914-01
Injector throat #1, white
$9.50
10914-02
Injector throat #2, blue
$9.50
11726
Single lever bypass seal
$17.00
11972
By-pass plug
$16.00
12281
tank O-ring
$9.50
12638
O-ring, drain
$5.00
12973-02
Injector nozzle #2, PVC
$7.00
12974-02
Injector throat #2, PVC
$7.00
12977
O-ring, brine line flow control
$0.52
13030
retainer, 1" pilot, distributer tube o-ring retainer
$6.00
13038
Drive pinion program wheel
$10.90
13094
BLFC button, .25 gpm
$6.00
13095
BLFC button, .5 gpm
$6.00
13163
Injector body
$27.00
13170
5600 main gear
$9.50
13244-01
Brine Line Flow Control Fitting
$18.00
13245
BLFC button retainer
$7.00
13255
Adaptor coupling with clips and screws, set of 2
$18.00
13301
O-ring, paired injector
$1.14
13302
O-ring, brine spacer
$1.30
13303
O-ring, injector cover
$4.00
13304
O-ring, distributer tube, 1
$6.00
13305
O-ring, adaptor coupling
$4.00
13497
air disperser
$2.00
13509
Impeller
$27.00
13546
End plug retainer
$17.00
13830
Drive pinion program wheel
$10.90
13831
Clutch, drive pinion
$4.00
14038
Meter cover assembly, standard
$112.00
14043
Meter cable, standard
$33.00
14253
Spring retainer
$4.00
14276
Spring
$1.72
14448
Powerhead housing, includes face decal
$57.00
14910
Meter cable, extended range, right angle
$20.00
15659
Meter cover assembly, extended range, right angle
$111.00
18743
Timer motor (120v 60h 1/30 rpm)
$56.00
18824
timer motor (220 VAC, 50 Hz, 1/30 rpm)
$76.00
18826
Timer motor, 24 VAC, 50 Hz, 1/30 rpm
$104.00
19228
Adaptor coupling, pair
$10.50
19659
Timer motor 24 VAC, 60 Hz, 1/30 rpm
$67.00
19660-1
Timer motor (220v 60h 1/30 rpm)
$78.00
19926-1
Timer motor (24v 50 Hz 1/30 rpm)
$67.00
5600-100
5600, complete timer control, bypass not included
$280.00
5600-101
5600, complete demand control, bypass not included
$419.00
5600-KitF
complete rebuild kit for 5600 including Seal kit, filter piston, brine valve, bypass seal (black cap), complete set of o-rings
$128.00
5600-KitL
complete rebuild kit for 5600 including Seal kit, water conserving piston (gray cap), brine valve, bypass seal, complete set of o-rings
$128.00
5600-KitS
complete rebuild kit for 5600 including Seal kit, standard piston (white cap), brine valve, bypass seal, complete set of o-rings
$128.00
5600-Manual
Fleck 5600 Manual
$6.00
5600-SE
Fleck 5600-SE (electronic) conplete control, bypass not included
$397.00
60022-25
Brine Line Flow Control assembly (brass fitting, blfc button and retainer)
$23.00
60032
5600 brine valve
$23.00
60040
Single lever bypass, 3/4
$106.00
60041
Single lever bypass, 1
$93.00
60086
meter module, includes cover assembly standard (14038), impeller (13509), meter body (13821), screws, clips, o-rings, flow straightener
$202.00
60102-00
5600 standard softener piston
$62.00
60102-10
5600 filter piston
$62.00
60102-20
5600 low flow piston
$62.00
60125
Seals and Spacers kit, 5600 and 9000 upper
$43.00
60225-01
Dust cover, standard
$14.00
60225-02
Dust cover, L bracket
$25.00
60353-00
5600 timer powerhead complete assembly, standard
$139.00
60353-10
5600 timer powerhead complete assembly, L bracket
$145.00
60354-00
5600 econominder powerhead complete assembly, standard
$145.00
60354-10
5600 econominder powerhead complete assembly, L bracket
$158.00
60405
Program wheel
$21.00
61400-12
Valve body, 1.05" distributer
$71.00
D1203
Upper basket
$5.00
Lbracket
L Bracket for power head, includes face decal
$59.00
MD1236
Lower distributer basket for 1" distributer
$7.00
O Ring kit
2x13301,1x13302,1x13303,4x13305,1x12638,1x12977, 1x12281
$29.00
TRANS24V
Transfomer, 120 VAC - 24 VDC
$27.00
