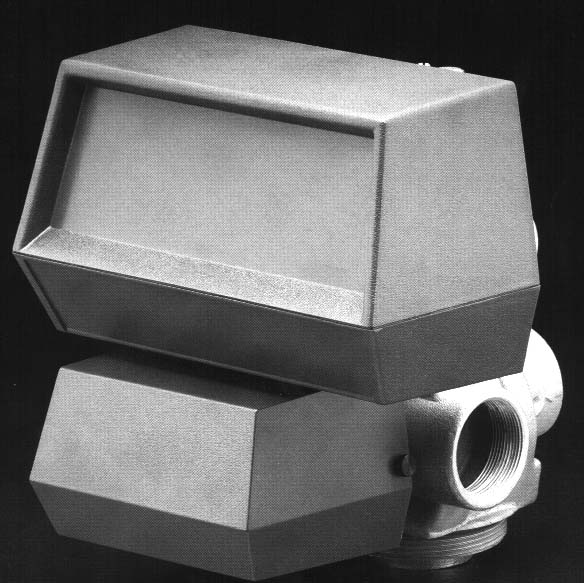

FLECK 2900 WATER CONDITIONING CONTROL


COMMONLY NEEDED PARTS
Item Description Price
10218
Piston drive microswitch
$17.00
10896
microswitch
$17.00
10913-02
Injector nozzle #2, blue
$9.50
10913-03
Injector nozzle #3, yellow
$9.50
10913-04
Injector nozzle #4, green
$9.50
10914-02
Injector throat #2, blue
$9.50
10914-03
Injector throat #3, yellow
$9.50
10914-04
Injector throat #4, green
$9.50
12777
brine cam
$12.90
12973-02
Injector nozzle #2, PVC
$7.00
12974-02
Injector throat #2, PVC
$7.00
13575
O ring, top of tank
$12.90
13577
O ring, distributer
$12.90
14749
Valve Body
$128.00
14750
2" Adapter Valve
$371.00
14779
Upper cover
$28.00
14800
Lower cover
$29.00
15210
O ring, top of park or wave cyber tank
$19.00
15218
1 inch meter cover assembly (standard)
$180.00
15237
1 inch meter cover assembly (extended range)
$266.00
15238
Manual
$6.00
15320
Microswitch
$17.00
164221
air disperser
$16.00
18743
Timer motor (120v 60h 1/30 rpm)
$56.00
19659
Timer motor 24 VAC, 60 Hz, 1/30 rpm
$67.00
19660-1
Timer motor (220v 60h 1/30 rpm)
$78.00
19925
gasket
$5.00
19926-1
Timer motor (24v 50 Hz 1/30 rpm)
$67.00
2900-200
Complete 2900 daytimer control, 1700 brine system
$1,688.00
2900-201
Complete 2900 demand control, 1700 brine system
$3,211.00
40387
lower drive motor, 110 vac, 60 hz (formerly part number 14772)
$107.00
40389
motor, 220 vac, 50/60 hz (formerly 15305)
$104.00
41543
upper drive motor, 110 vac, 60 hz, (formerly 40384)
$117.00
60029
1600 brine valve assembly
$98.00
60034
1700 brine valve assembly
$154.00
60036
1800 brine valve assembly
$288.00
60055-51
Piston drive motor assembly (lower drive), 110 VAC, 60 Hz includes motor 40387 (formerly part number 14772)
$168.00
60090-HF
Piston (2900 Top and 2750 High Flow)
$83.00
60091-HF
Piston, hot water
$132.00
60103
Lower piston, hard water bypass, 2900
$266.00
60104
Lower piston, no hard water bypass, 2900
$270.00
60121
Seal kit, 2510, 2750, 2900 upper
$35.00
60128
Seal kit, lower, 2900 and 2900 S
$50.00
60160-10
Drive cam assembly
$27.00
60160-21
Drive cam assembly (formerly 14775)
$31.00
60304-01
3200 timer, 24 VDC, 12 day timer, delayed regeneration, 1/30 rpm
$110.00
60304-13
3200 timer, 120 VAC, 12 day timer, delayed regeneration, 1/30 rpm
$110.00
60306-01
3210 timer, 24 VDC, metered timer, delayed regeneration, 1/30 rpm
$110.00
60306-13
3210 timer, 120 VAC, metered timer, delayed regeneration, 1/30 rpm
$110.00
61530
Seal Kit, upper, 2900S
$41.00
61540
Piston assembly (downflow), upper, 2900S
$94.00
61540-01
Piston assembly (downflow), Hot water, upper, 2900S
$119.00
61550
lower piston assembly, standard 2900S, hard water bypass
$259.00
61555
Piston assembly, lower, No hard water bypass, 2900S
$273.00
