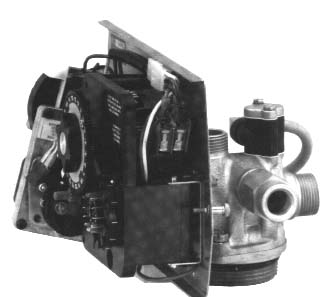

FLECK 2750 WATER CONDITIONING CONTROL


COMMONLY NEEDED PARTS
Item Description Price
10218
Piston drive microswitch
$20.00
10381
Tank O-ring
$10.90
10774
Bracket, drive side motor mounting
$18.00
10896
microswitch
$17.00
10913-00
Injector nozzle #0, red
$10.50
10913-01
Injector nozzle #1, white
$10.50
10913-02
Injector nozzle #2, blue
$10.50
10913-03
Injector nozzle #3, yellow
$10.50
10913-04
Injector nozzle #4, green
$10.50
10914-00
Injector throat #0, red
$10.50
10914-01
Injector throat #1, white
$10.50
10914-02
Injector throat #2, blue
$10.50
10914-03
Injector throat #3, yellow
$10.50
10914-04
Injector throat #4, green
$10.50
11826
Bracket, sensor motor
$11.90
12973-02
Injector nozzle #2, PVC
$7.00
12974-02
Injector throat #2, PVC
$7.00
14749
Valve Body
$128.00
15320
Microswitch
$17.00
18743
Timer motor (120v 60h 1/30 rpm)
$56.00
19659
Timer motor 24 VAC, 60 Hz, 1/30 rpm
$67.00
19660-1
Timer motor (220v 60h 1/30 rpm)
$78.00
19926-1
Timer motor (24v 50 Hz 1/30 rpm)
$67.00
2750-100
Complete 2750 control, daytimer
$623.00
2750-101
Complete 2750 control, metered
$1,196.00
2750-Manual
Manual
$6.00
60011
1650 brine valve with no brine line flow control
$63.00
60029
1600 brine valve assembly
$77.00
60034
1700 brine valve assembly
$154.00
60050-21
Motor drive assembly (formerly part number 10769, 40384)
$182.00
60090
Piston
$64.00
60090-HF
Piston (2900 Top and 2750 High Flow)
$98.00
60091-HF
Piston, hot water
$140.00
60121
Seal kit, 2510, 2750, 2900 upper
$38.00
60122
Seal kit, hot water
$53.00
60304-01
3200 timer, 24 VDC, 12 day timer, delayed regeneration, 1/30 rpm
$110.00
60304-13
3200 timer, 120 VAC, 12 day timer, delayed regeneration, 1/30 rpm
$110.00
60306-01
3210 timer, 24 VDC, metered timer, delayed regeneration, 1/30 rpm
$110.00
60306-13
3210 timer, 120 VAC, metered timer, delayed regeneration, 1/30 rpm
$110.00
MD1236
Lower distributer basket for 1" distributer
$8.00
